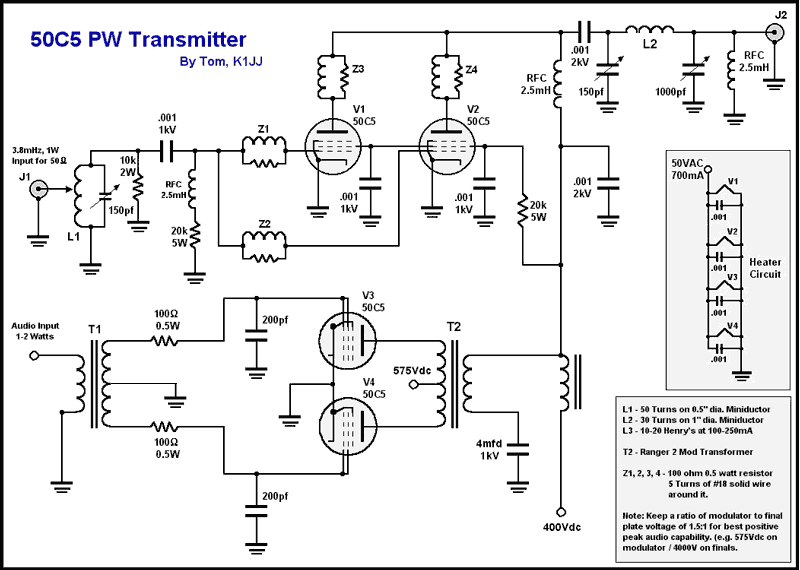

50C5 PW Transmitter

by Tom, KIJJ


Drawing by John, W2WDX

If you would like a copy of this schematic that will actually print the right size and do so with high clarity, you can click here. This is a large image so expect to be waiting a long time for your browser to display it, but it will be worth the wait when you print it. Once it has completely finished loading on your browser, right click on the image and select "Save Picture..." and save it on your hard drive. Hopefully you will have enough memory to print it.
