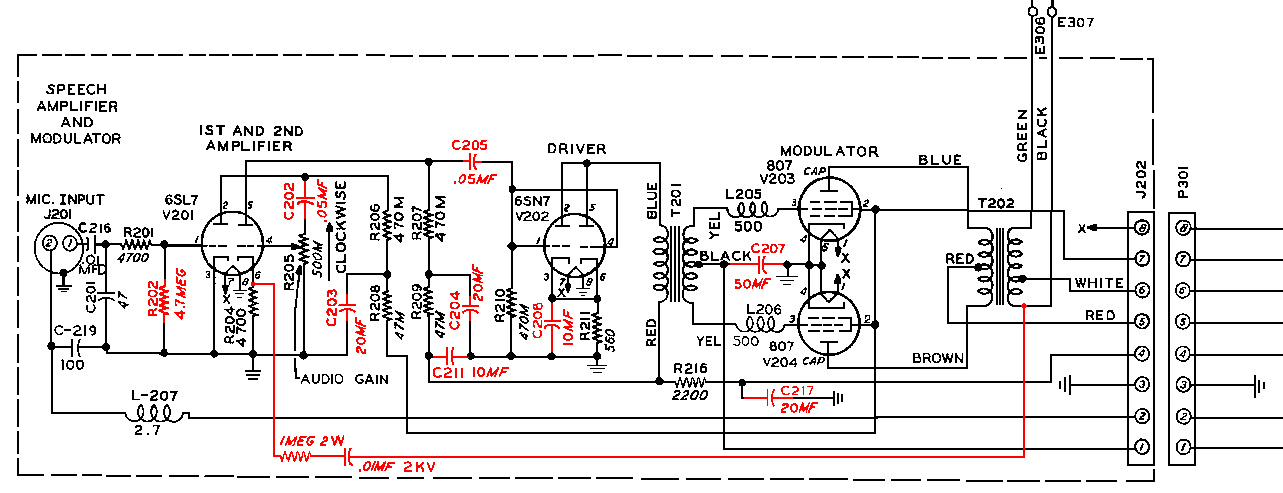

Modified Speech Amp/Driver for the 32V-3 by WA1HLR
(Items in red denote changed or added components)
Component Changes and Additions
| Component | Original Value | New Value |
| C202 | 0.01 uF/300V Mica | 0.05 uF |
| C203 | 2 uF/600V Paper | 20 uF |
| C204 | 2 uF/600V Paper | 20 uF |
| C205 | 0.01 uF/300V Mica | 0.05 uF |
| C206 | 2 uF/600V Paper | 10 uF |
| C207 | 2 uF/600V Paper | 50 uF |
| C211 | 0.05 uF/600V Paper | 10 uF |
| C217 | 8uF/350V Electrolytic | 20 uF |
| R202 | 1M | 4.7M |
| New/Added Parts | ||
| Cap in Negative Feedback Circuit | 0.01 uF2 kV | |
| Resistor in Negative Feedback Circuit | 1M/2W | |
HUZ: I assume these mods are good for the 32V-1 and 2 transmitters too. I've heard this mod done recently on Steve's (KA1ORG) 32V. The difference was like night and day. Now Steve has a real nice smooth low end and very clean audio. This is an excellent mod that requires no blasting or drilling. The rig can easily be returned to stock condition for the collectors.
